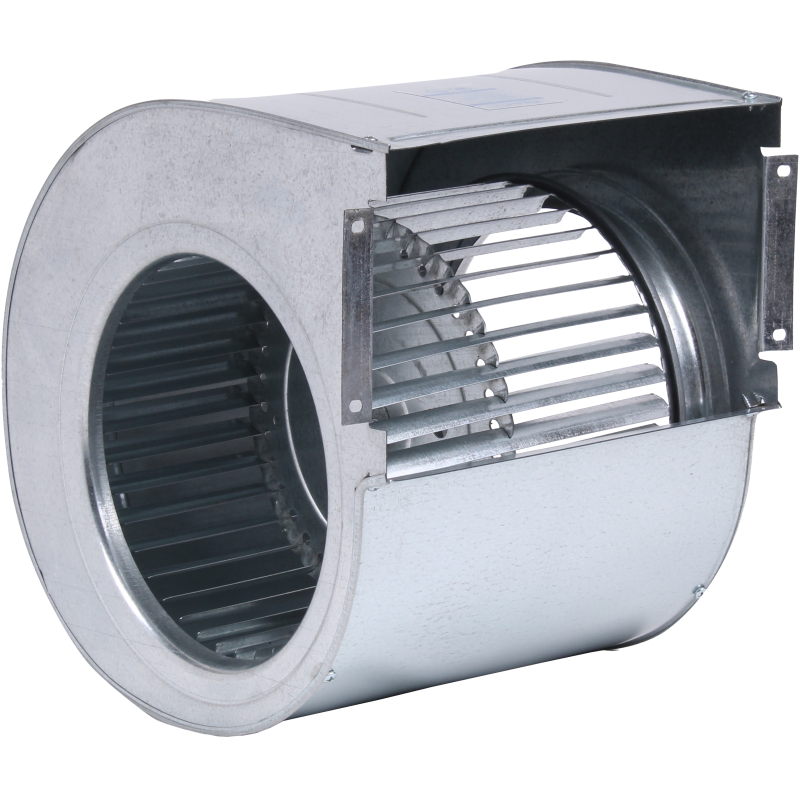

Model F2020-S

Model F2020-S
Fan coil blowers and Duct Split

Fan coil and Duct Split Blowers Type F2020-S

Gashtavar Company has tried to produce the best quality of blowers. Maximum air flow and pressure and minimum amount of noise are considered in the design of this product.

These blowers are dynamically balanced by precision instruments.

F2020-S model is like F2020 model with different design in housing. The height of the housing in this model is 285 mm and has been reduced by 4 cm compared to the F2020 model, which will depend on the height of the device. In contrast, it is reduced to about 100 cfm air flow. It also creates good static pressure for ducting.


840 gr

Fan Weight:

200 mm

Fan Length:

200 mm

Fan Diameter:

53 db

Sound Level:

221.6 pa

Max Pressure:

991 cfm

Max Airflow:


The following drawing shows the housing dimensions of the F2020-S model:



The following diagrams show the F2020-S fan curve in seven speeds from 600 to 1200 rmp:

The first diagram shows the relationship between the air flow rate and the total pressure and the second diagram shows the air flow compare to static pressure in F2020-S blowers.

To learn how to get information from the following chart, you can refer to the page "Guide to using the blower charts".
