Model F2020

Model F2020
Fan coil blowers and Duct Split

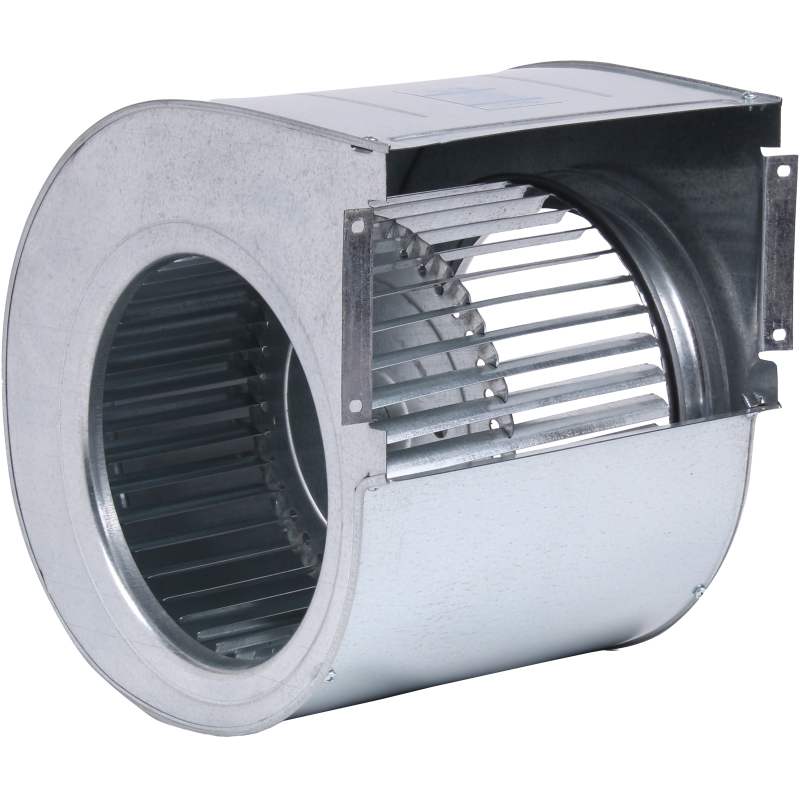

Fan coil and Duct Split Blowers Type F2020

We are proud that we have been able to provide blowers of duct split with the best quality for the air conditioning companies.

Noise, pressure, air flow and power consumption are among the parameters considered in the design of this product.

The blowers are balanced with international standards and with high accuracy.

F2020 model is commonly used for duct fan coils and duct splits. This model has good static pressure for ducting.


840 gr

Fan Weight:

200 mm

Fan Length:

200 mm

Fan Diameter:

50 db

Sound Level:

236.5 pa

Max Pressure:

1059 cfm

Max Airflow:


The following drawing shows the housing dimensions of the F2020 model:



The following diagrams show the F2020 fan curve in seven speeds from 600 to 1200 rmp:

The first diagram shows the relationship between the air flow rate and the total pressure and the second diagram shows the air flow compare to static pressure in F2020 blowers.

To learn how to get information from the following chart, you can refer to the page "Guide to using the blower charts".
