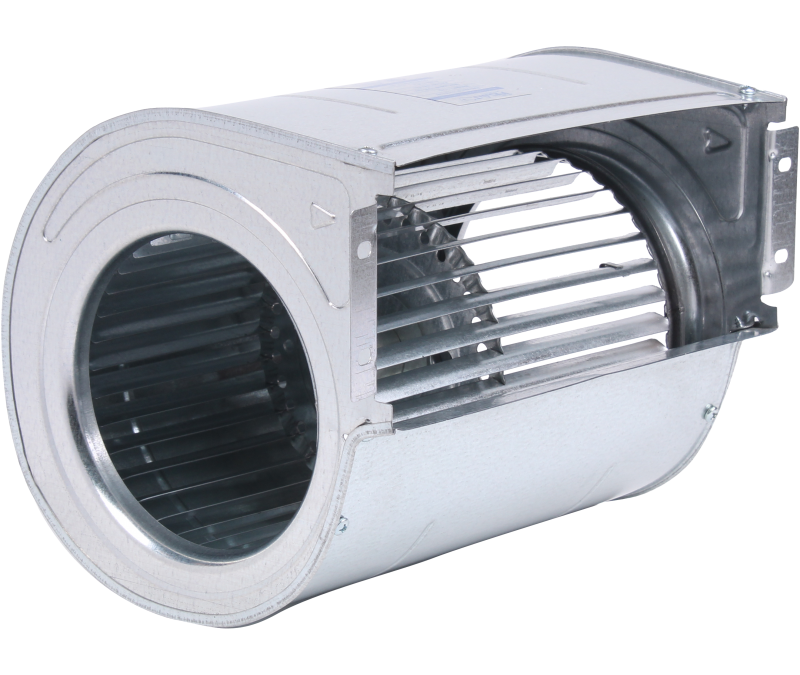

Model F1320

Model F1320
Fan coil blowers and Duct Split

Fan coil and Duct Split Blowers Type F1320

In several last years, Geshtavar Company produce fan coil impellers for most of air conditioning companies in Iran.

Air flow, pressure, noise and power consumption are various criteria that have been considered in the design of this product to provide the highest efficiency. But the most important thing is to reduce noise in these impellers.

Designing The best angle for the blower blades help to reduce the sound level.

Also, these impellers are dynamically balanced with an accuracy of 0.05 g. Which reduces vibration and increases its lifetime.

F1320 model use for fan coils with various capacities. This type needs small space and also providing suitable air flow (up to 300 cfm) which allows designing different types of fan coils.


480 gr

Fan Weight:

200 mm

Fan Length:

130 mm

Fan Diameter:

35 db

Sound Level:

88 pa

Max Pressure:

383 cfm

Max Airflow:


The following drawing shows the housing dimensions of the F1320 model:



The following diagrams show the F1320 fan curve in seven speeds from 600 to 1200 rmp:

The first diagram shows the relationship between the air flow rate and the total pressure and the second diagram shows the air flow compare to static pressure in F1320 blowers.


To learn how to get information from the following chart, you can refer to the page "Guide to using the blower charts".
