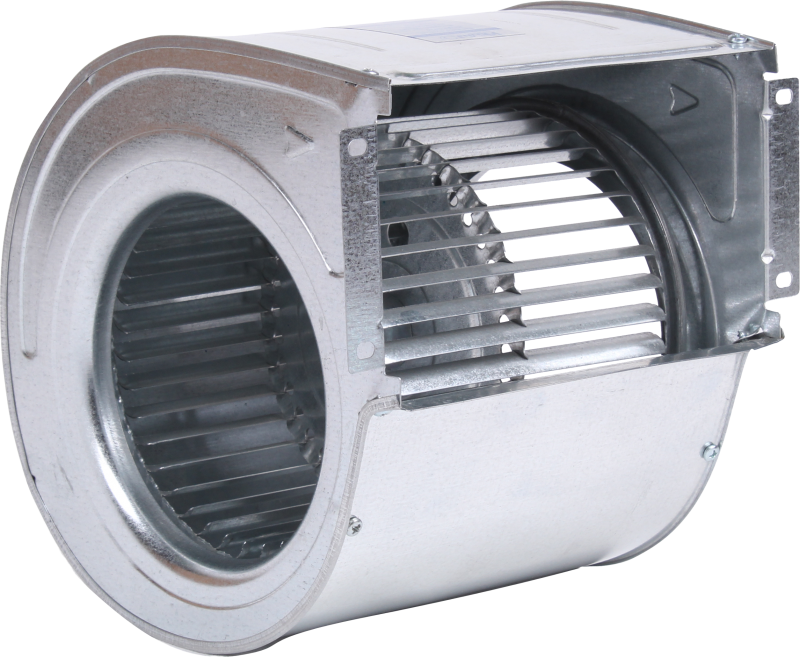

Model F1515

Model F1515
Fan coil blowers and Duct Split

Fan coil and Duct Split Blowers Type F1515

In the fan coil device, the rotating set (electromotor and blower) is one of the most important parts of the product.

We are proud that in the last few years we have been able to help the country's air conditioning industry by producing products with appropriate quality.

We have tried to achieve the least amount of noise by making considerations in the housing and the blower blades design.

Gashtavar blowers are balanced with an accuracy of 0.05 g to minimize vibration in the rotating set.

F1515 model is commonly used for low capacity’s fan coils. These blowers make low noise and needs less space witch is one of the advantages of using this type of blower.


450 gr

Fan Weight:

150 mm

Fan Length:

150 mm

Fan Diameter:

40 db

Sound Level:

114.6 pa

Max Pressure:

447 cfm

Max Airflow:


The following drawing shows the housing dimensions of the F1515 model:

The following diagrams show the F1515 fan curve in seven speeds from 600 to 1200 rmp:

The first diagram shows the relationship between the air flow rate and the total pressure and the second diagram shows the air flow compare to static pressure in F1515 blowers.

To learn how to get information from the following chart, you can refer to the page "Guide to using the blower charts".
