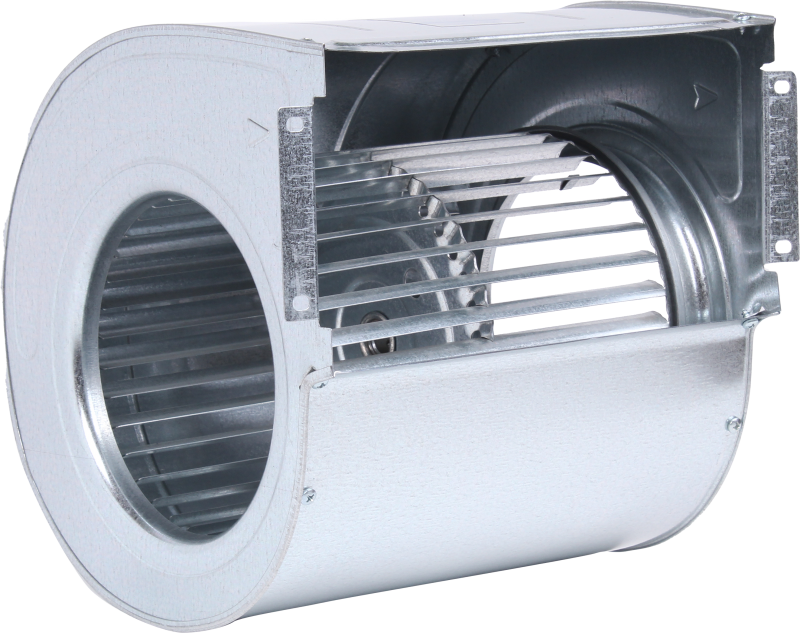

Model F1620

Model F1620
Fan coil blowers and Duct Split

Fan coil and Duct Split Blowers Type F1620

Gashtavar Company produce blowers of duct split and fan coil devices. These blowers with the minimum of noise and power consumption have been able to create acceptable air flow and static pressure.

When we need to ducting, creating the high pressure is very important in product design. Therefore, this issue has been considered in the design and variety of Gashtavar Company blowers.

The Gashtavar fan blower is dynamically balanced with high accuracy to have the minimum amount of vibration and noise in the rotating set.

F1620 model is commonly used for duct fan coils and duct splits. This model has good static pressure for ducting.


570 gr

Fan Weight:

200 mm

Fan Length:

160 mm

Fan Diameter:

45 db

Sound Level:

134.9 pa

Max Pressure:

694 cfm

Max Airflow:


The following drawing shows the housing dimensions of the F1620 model:



The following diagrams show the F1620 fan curve in seven speeds from 600 to 1200 rmp:

The first diagram shows the relationship between the air flow rate and the total pressure and the second diagram shows the air flow compare to static pressure in F1620 blowers.

To learn how to get information from the following chart, you can refer to the page "Guide to using the blower charts".
