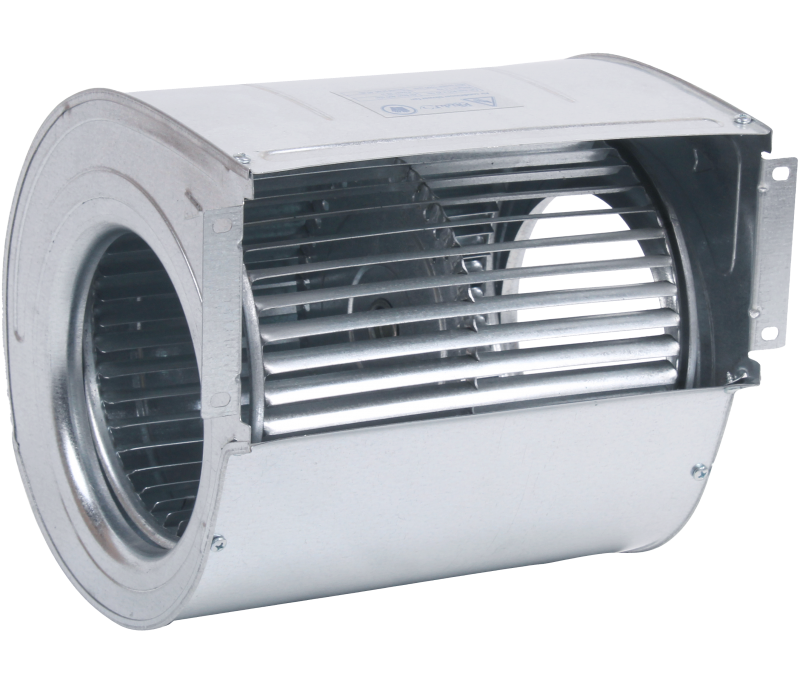

Model F1520

Model F1520
Fan coil blowers and Duct Split

Fan coil and Duct Split Blowers Type F1520

In recent years, Gashtavar Company has been able to help the air conditioning industry by producing blowers with international standards.

Minimum sound level, maximum air flow and pressure and reduction of power consumption are among the factors that have been considered in the design of this product.

Also, these blower fans dynamically are balanced with high accuracy (0.05 g)

F1520 model can be used in fan coil and duct split devices. These blowers need the small space and also creates a suitable static pressure (113 Pa). These blowers commonly used at low speeds (about 900 rpm) in fan coil devices which provide enough air flow with very little noise.


530 gr

Fan Weight:

200 mm

Fan Length:

150 mm

Fan Diameter:

40 db

Sound Level:

113.3 pa

Max Pressure:

544 cfm

Max Airflow:



The following drawing shows the housing dimensions of the F1520model:


The following diagrams show the F1520 fan curve in seven speeds from 600 to 1200 rmp:

The first diagram shows the relationship between the air flow rate and the total pressure and the second diagram shows the air flow compare to static pressure in F1520 blowers.

To learn how to get information from the following chart, you can refer to the page "Guide to using the blower charts".
